Mapping Correction ​

Using the Mapping Correction, you can correct errors in the results of the Reference Image Mapper and Marker Mapper, which may have happened due to e.g. motion blur or occlusions. It allows you to add missing fixations and adjust the locations of mapped fixations.

Setup ​

• Enrich: First, run your Reference Image Mapper or Manual Mapper Enrichment, if not already done.
• Correct: After the Enrichment has completed, open it and validate the mapping results. If you need to make corrections, click Edit next to Mapping Correction to start the interface.
  • Initially, all fixations are in their default mapped state; i.e., the result of the Enrichment’s automatic mapping process.
  • You can Skip to next or previous fixation with the corresponding buttons. Similarly, you can click on the Recording Timeline to navigate fixations.
  • You can click on the Reference Image to fill in missing fixations or adjust mapped fixations, and then Accept them. You can also use the D keyboard shortcut.
  • If a fixation does not fall on the Reference Image, then click outside of the image.
  • You can Revert any accepted fixations with the corresponding button or the R keyboard shortcut.
  • Click Done once you are finished.

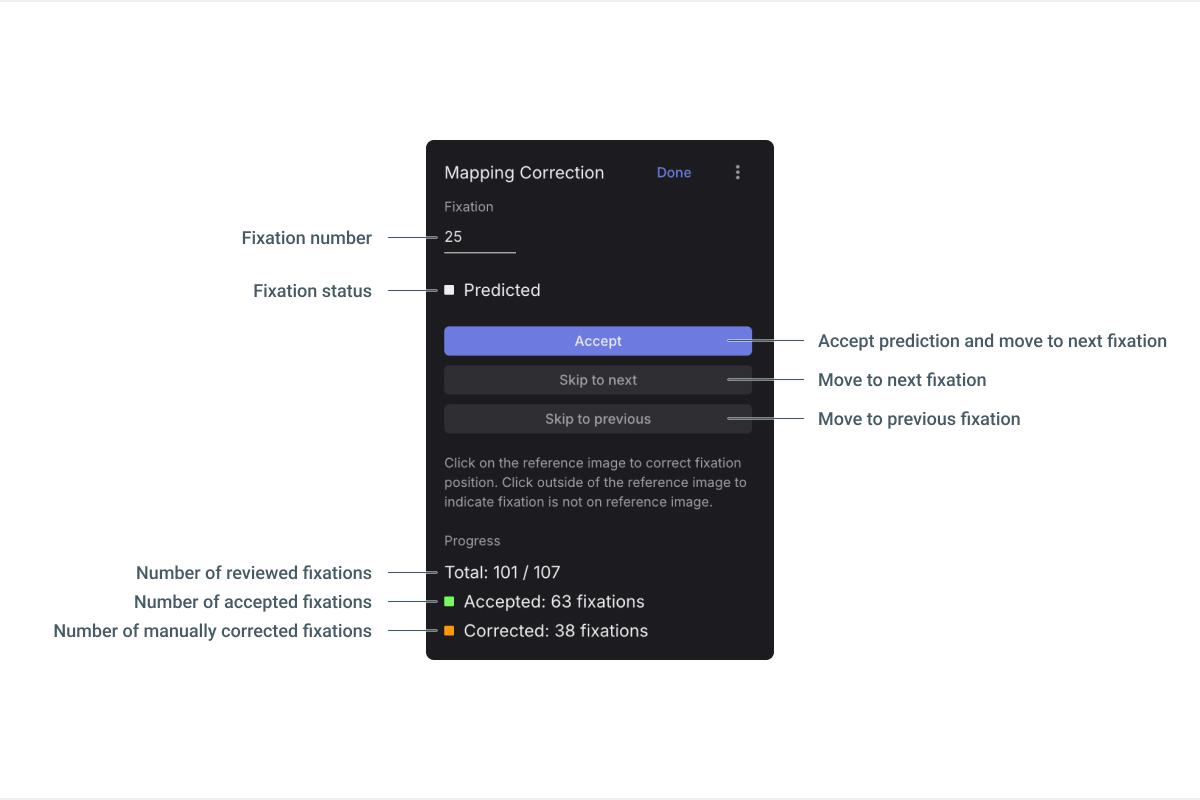

You will see the total number of accepted & corrected fixations in the Mapping Correction panel. It shows the fixation currently being mapped, and you can enter a number to jump to a specific fixation.

You will also see all fixations and their durations visualized in the timeline below.

Export ​

Once you are done with Mapping Correction, then the output of the Enrichment is automatically updated and can be downloaded. Please refer to each Enrichment’s respective Export Format Documentation:

• Reference Image Mapper Export Format
• Marker Mapper Export Format
