Face Mapper
The Face Mapper enrichment robustly detects faces in the scene video. Detections consist of the bounding box of the face. This provides you with insight into when and where faces are visible to a subject.
This enrichment automatically maps gaze data onto faces so that you can determine when a subject has been looking at them.
Additionally, this enrichment also calculates the location of the most important facial landmarks in the image for each face: left eye, right eye, nose, left mouth corner, and right mouth corner.
The face detection algorithm used under the hood for this enrichment is RetinaFace.
Validate the Mapping

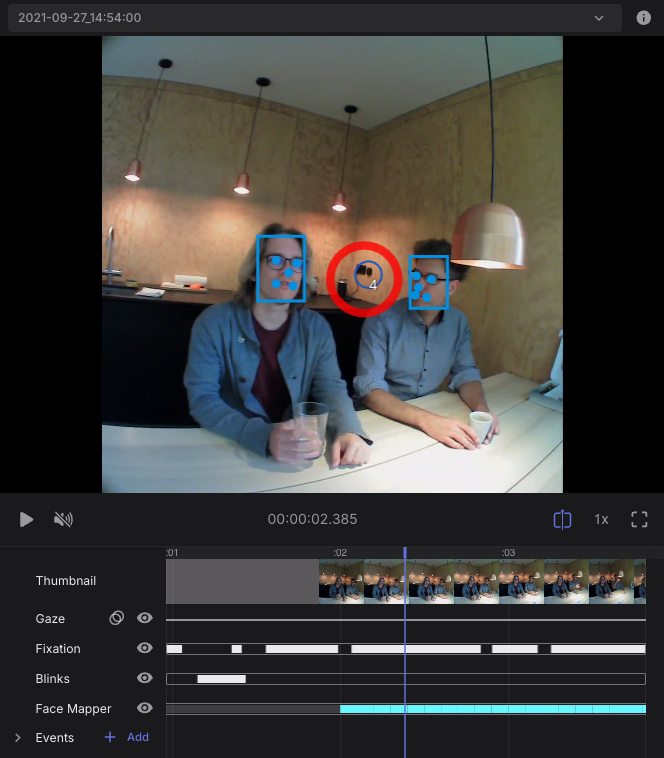

After the enrichment is successfully run, the recording timeline contains visualizations that indicate when faces were detected.
Export Format
face_positions.csv
This file contains all the individual face detections.
| Field | Description |
|---|---|
| section id | Unique identifier of the corresponding section. |
| recording id | Unique identifier of the recording this sample belongs to. |
| timestamp [ns] | UTC timestamp in nanoseconds of the corresponding world camera frame timestamp. If multiple faces have been detected in the same scene video frame, each face is reported in a separate row with the same timestamp. |
| p1 x [px] | x-coordinate of the starting point of the bounding box rectangle. |
| p1 y [px] | y-coordinate of the starting point of the bounding box rectangle. |
| p2 x [px] | x-coordinate of the ending point of the bounding box rectangle. |
| p2 y [px] | y-coordinate of the ending point of the bounding box rectangle. |
| eye left x [px] | X coordinate of the left eye in image coordinates in pixels. |
| eye left y [px] | Y coordinate of the left eye in image coordinates in pixels. |
| eye right x [px] | X coordinate of the right eye in image coordinates in pixels. |
| eye right y [px] | Y coordinate of the right eye in image coordinates in pixels. |
| nose x [px] | X coordinate of the nose in image coordinates in pixels. |
| nose y [px] | Y coordinate of the nose in image coordinates in pixels. |
| mouth left x [px] | X coordinate of the left mouth corner in image coordinates in pixels. |
| mouth left y [px] | Y coordinate of the left mouth corner in image coordinates in pixels. |
| mouth right x [px] | X coordinate of the right mouth corner in image coordinates in pixels. |
| mouth right y [px] | Y coordinate of the right mouth corner in image coordinates in pixels. |
gaze_on_face.csv
This file indicates which gaze samples are on faces (within the bounding box of detected faces).
| Field | Description |
|---|---|
| section id | Unique identifier of the corresponding section. |
| recording id | Unique identifier of the recording this sample belongs to. |
| timestamp [ns] | UTC timestamp in nanoseconds of the sample. Equal to the timestamp of the corresponding gaze sample. |
| gaze on face | Boolean indicating whether the gaze point is on a face. |
fixations_on_face.csv
This file indicates which fixations are on faces (within the bounding box of detected faces).
| Field | Description |
|---|---|
| section id | Unique identifier of the corresponding section. |
| recording id | Unique identifier of the recording this sample belongs to. |
| fixation id | Identifier of the fixation. The counter starts at the beginning of the recording. |
| start timestamp [ns] | UTC timestamp in nanoseconds of the start of the fixation. |
| end timestamp [ns] | UTC timestamp in nanoseconds of the end of the fixation. |
| fixation on face | Boolean indicating whether the fixation is on a face. |
